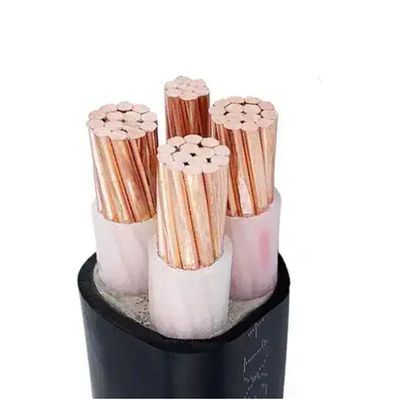

Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor

  • Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor
  • Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor
  • Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number YJV32
Minimum Order Quantity 100 Meters
Price $0.2/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Truck Parts Type Insulated, Electrical Cable Wires Copper For House Wiring
Length 50M;100M Conductor Material Solid
Product Name YJV32 Power Cable MOQ 1 Meters
Standard JB/T 8734.5-2016 Model Number JYV32
Highlight

YJV32 Armoured Power Cable

,

YJV32 pvc armoured cable

,

Solid Conductor Armoured Power Cable
Leave a Message
Product Description
Product model and application

What kind of cable is YJV32?

It is a power cable equipped with XLPE sheath and steel wire armor, and its inner core is generally copper core wire. This kind of cable not only has good corrosion resistance and electrical performance, but also has a relatively simple structure and is relatively light in weight. power grid and more.

Model

Name

APPLICATION
Copper core
aluminium core
YJV
YJLV
XLPE insulated PVC sheathed power cable
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
YJY
YJLY
XLPE insulated PE sheathed power cable
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
YJV22
YJLV22
XLPE insulated steel tape armored PVC sheathed power cable
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
YJV23
YJLV23
XLPE insulated steel tape armored PE sheathed power cable
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
YJV32
YJLV32
XLPE insulated fine steel wire armored PVC sheathed power cable
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force



YJV32 cable YJV32 power cable YJV32 steel wire armored cable model name:
VV 0.6/1KV copper core flame retardant PVC insulated PVC sheathed power cable
VV22 0.6/1KV copper core flame retardant PVC insulated steel tape armored PVC sheathed power cable
VV32 0.6/1KV copper core flame retardant PVC insulated thin steel wire armored PVC sheathed power cable
VV42 0.6/1KV copper core flame retardant PVC insulated thick steel wire armored PVC sheathed power cable
YJV 0.6/1K Cu core flame retardant XLPE insulated PVC sheathed power cable
YJV22 0.6/1KV copper core flame retardant XLPE insulated steel tape armored PVC sheathed power cable
YJV32 0.6/1KV copper core flame retardant XLPE insulated fine steel wire armored PVC sheathed power cable
NH-VV 0.6/1KV Copper core flame retardant PVC insulated PVC sheathed power cable
NH-VV22 0.6/1KV Copper core flame retardant PVC insulated steel tape armored PVC sheathed power cable

Conductor DC Resistance and Conductor Short Circuit Current



Nominal section

(mm2)

 Maximum DC resistance of conductor at 20°C (Ω/km) 90 ℃ conductor maximum allowable short-circuit current (1 second)
copper conductor aluminum conductor copper conductor aluminum conductor
25 0.727 1.200 3.69 2.42
35 0.524 0.868 5.15 3.37
50 0.387 0.641 7.31 4.79
70 0.268 0.443 10.2 6.68
95 0.193 0.320 13.8 9.03
120 0.153 0.253 17.4 11.4
150 0.124 0.206 21.7 14.2
185 0.0991 0.164 26.7 17.5
240 0.0754 0.125 34.6 22.6
300 0.0601 0.100 43.1 28.2
400 0.0470 0.0778 57.4 37.6
500 0.0366 0.0605 71.7 47.0
630 0.0283 0.0469 88.8

58.0





Product Details
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 0
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 1
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 2
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 3
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 4
More Models
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 5
Application
Safety YJV32 PVC Armoured Power Cable With Solid Copper Conductor 6
FAQ

1.When can I get the price? We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality? After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample? After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

4.What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
