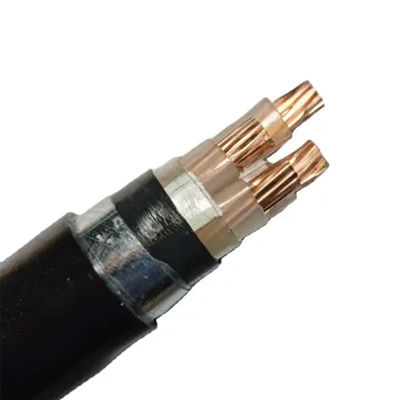

Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable

  • Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable
  • Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable
  • Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable
Place of Origin Jiangsu China
Brand Name Jiangnan
Certification CE，CCC，SABS，TUV，RoHS
Model Number VV22
Minimum Order Quantity 100 Meters
Price $0.35/meter
Packaging Details Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)
Supply Ability 50000meters<7days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Copper Core PVC Insulation Wire Application Underground
Jacket PVC PE XLPE Packing 100/200/305/500Meter
Model Number VV22 Type Fiber Optic Cable
Conductor Material Copper MOQ 500 Meters
Highlight

Pvc Insulated Sheathed Cable VV22

,

VV22 4 Core 400mm Cable

,

IEC60502 Pvc Insulated Sheathed Cable
Leave a Message
Product Description
Products Description



There are many types of wires and cables, generally represented by letters, and different letters have different meanings.

vv22 cable model meaning:

VV22 refers to the copper core conductor PVC insulated PVC sheathed steel tape armored power cable.

Among them, the first V is the insulating material polyvinyl chloride (PVC), the second V is the sheath material PVC, and 22 means steel tape armor in the cable.

1. Standards
The cable is manufactured according to the standard GB 12706-91 or IEC60502.
It is suitable to be installed in the power transmission and distribution lines with rated voltage below(including) 0.6/1KV (U0/U).
2. Application
For laying indoors, in tunnels and in ducts, unable to bear external mechanical forces.
3. Operation Characteristic
The maximum operating temperature of the cable for long period use shall not exceed 70 ℃,the circuit temperature for 5 seconds not exceed 160 ℃. The cable is not limited by the difference of level when installed and the ambient temperature shall not be below 0℃. The minimum bending radius for single core cable is 40(D+d)mm, for multi core cable is 30(D+d)mm, (D and d are nominal outer diameter of main conductor of cable respectively if the main conductor is not round d=1.13 /s.S is the moninal cross sectional area of the main conductor ductor in mm).The single core armoured cable are only suitable for D.C.lines.

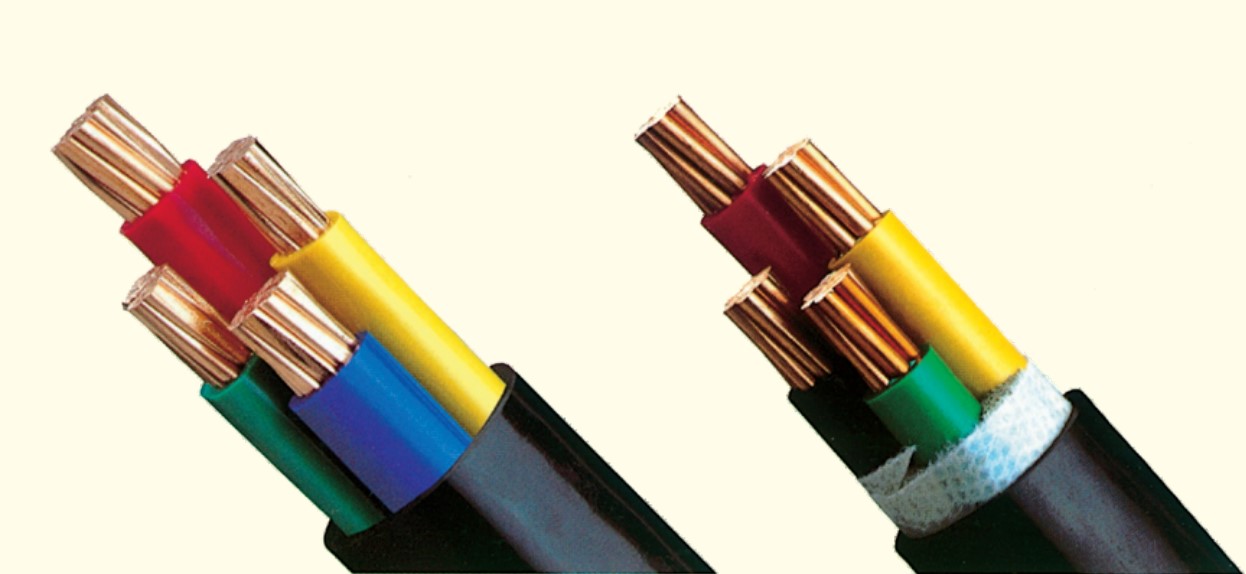

Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable 0







VV22
PVC insulated PVC Sheathed power cable VV22 4 Core/ 4-400mm

Advantages of vv22 cables

1,Small footprint
2,high reliability
3,with ultra-high pressure
4,Large distributed capacitance
5,low maintenance workload

Application
Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable 1
Quality Inspection
Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable 3
Standard IEC60502 Pvc Insulated Sheathed Cable VV22 4 Core 400mm Cable 4
FAQ
1.What are your main products?
bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power
cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?
Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?
Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.

5. Are you a factory or trading company?Are you a factory or a trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.
